691322310004
Manufacturer:
Wurth Electronics
Mfr.Part #:
691322310004
Datasheet:
Description:

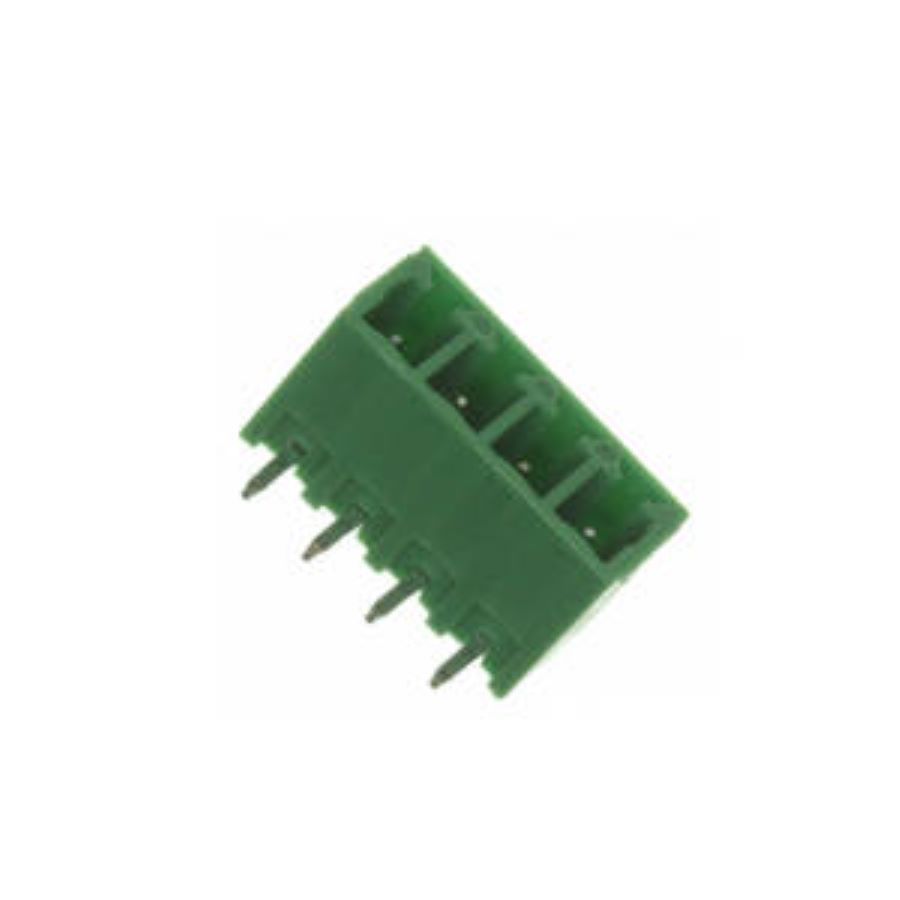

Terminal Blocks Through Hole 4 3.81 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Length | 10.5 mm |
| Width | 16.63 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 9.2 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.81 mm |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.81 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Orientation | 90° Angle (Right) |
| Color | Green |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Connection Method | Plug |
Stock: 748
Distributors
pcbx
pcbxUnit Price$0.41309
Ext.Price$0.41309
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41309 | $0.41309 |
| 10 | $0.36981 | $3.69810 |
| 25 | $0.35472 | $8.86800 |
| 50 | $0.34025 | $17.01250 |
